Formula Society of Automotive Engineers (FSAE) - Aerodynamics

Revolved around Computer Aided Design (CAD) of moulds and parts in Siemens NX and Computer Aided Manufacturing (CAM) in Fusion 360 for gantry, water jetting, milling, and laser cutting machines in Fusion 360 to machine molds.

This project revolved around several sub-projects. To familiarize myself with the design practices for aerodynamic automotive engineering, I designed my own aerofoil in Siemens NX.

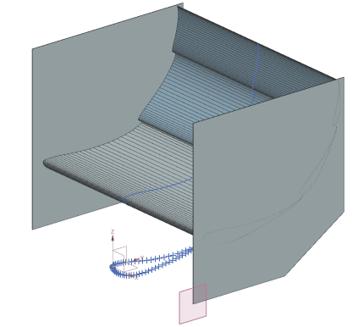

3 Element Aerofil Design for Formula Car

My work mainly revolved around the manufacturing of multiple automotive parts from start to finish. The first step usually would be designing the mould for the part in Seimens NX.

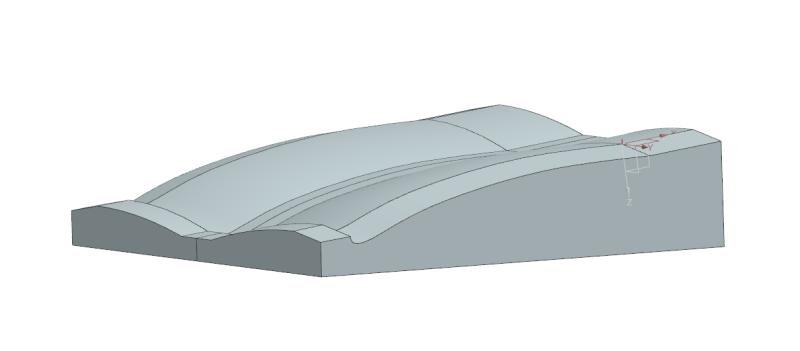

Example of NX Mould designed

Prior to manufacturing the part, Computer Aided Manufacturing (CAM) was done on each part in Fusion 360.

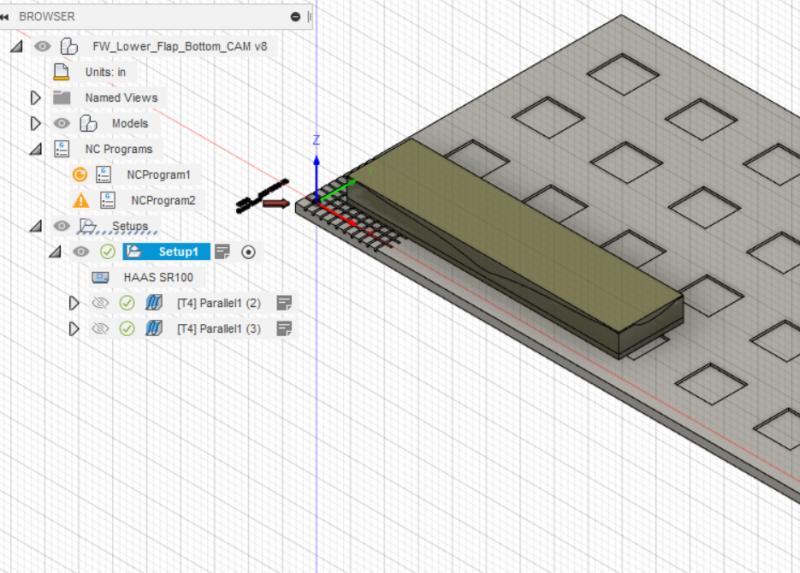

Example of CAM applied on part in Fusion 360

Finally the part would be manufactured using a HAAS Gantry Sheet. Once the mold is manufacutred, resin vaccum enclosure would be used to set the carbon fiber layers - to get heavy and durable parts of the car frame

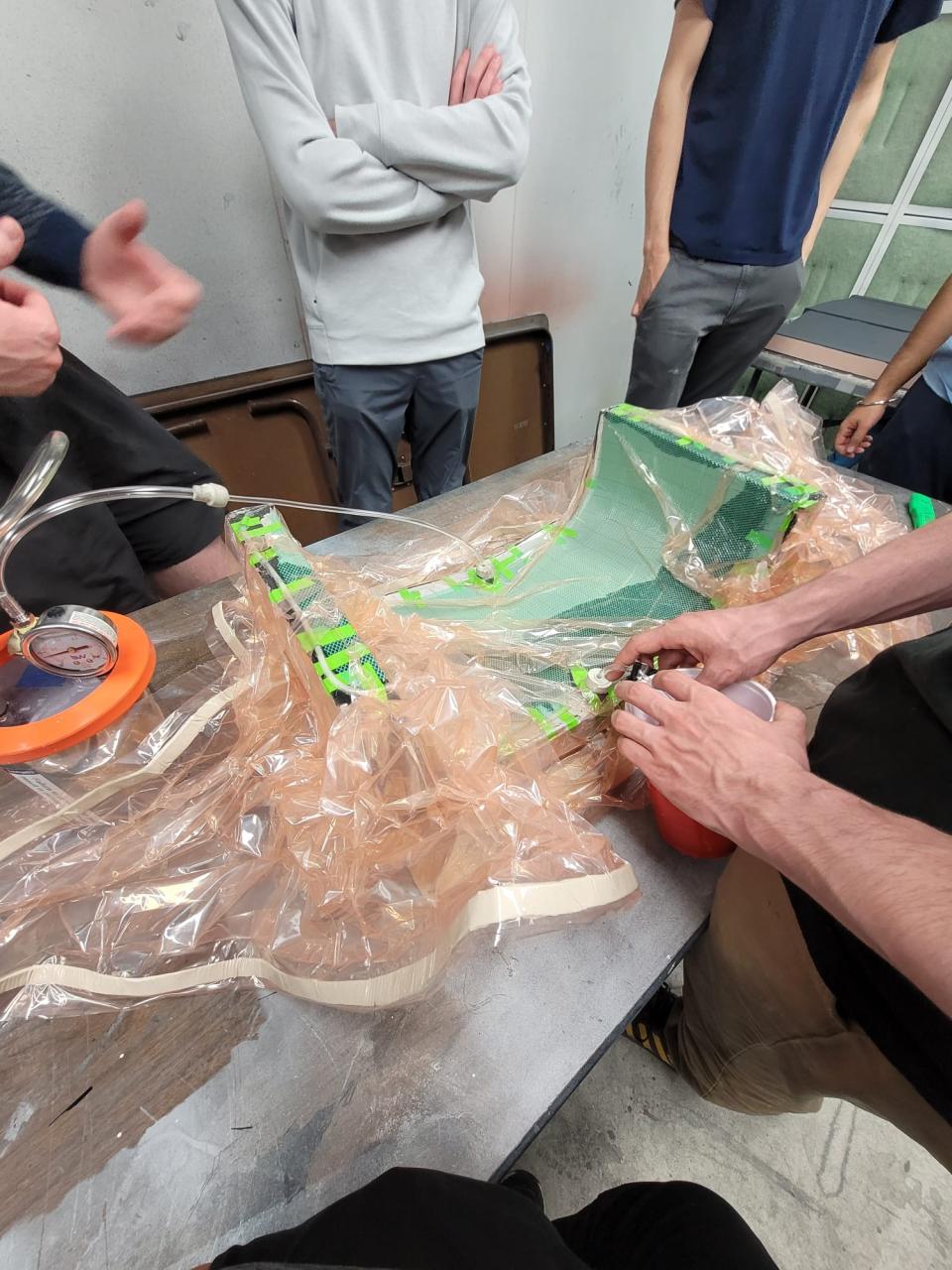

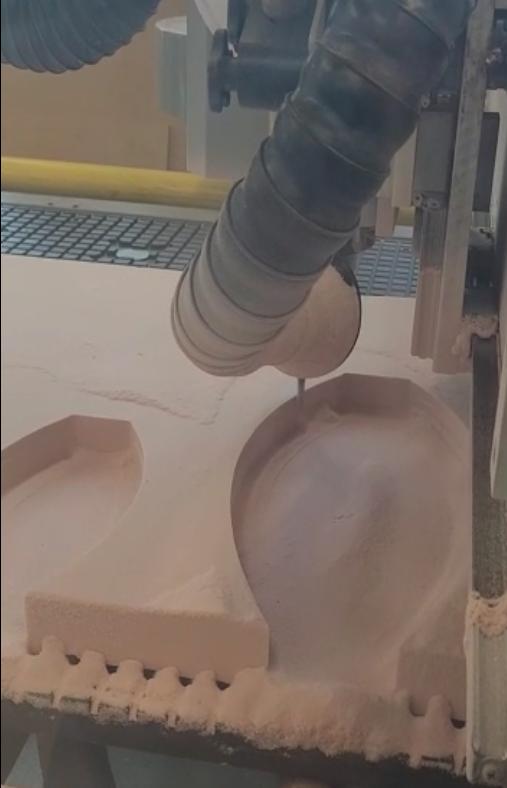

Left shows Manufacturing in Gantry Sheet.Right shows the resin setting process

In addition to this, I often worked on assembling different parts of the car frame - working on creating and machining jigging elements using water jet machines

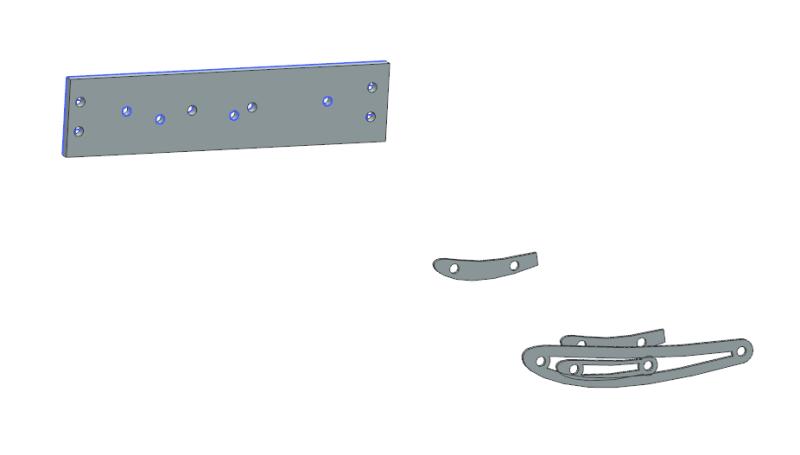

Example of Jigging Design in Siemens NX

In the year of 2023, the Purdue FSAE team placed 2nd overall in the National Michigan races!!
